Instrument Transformers

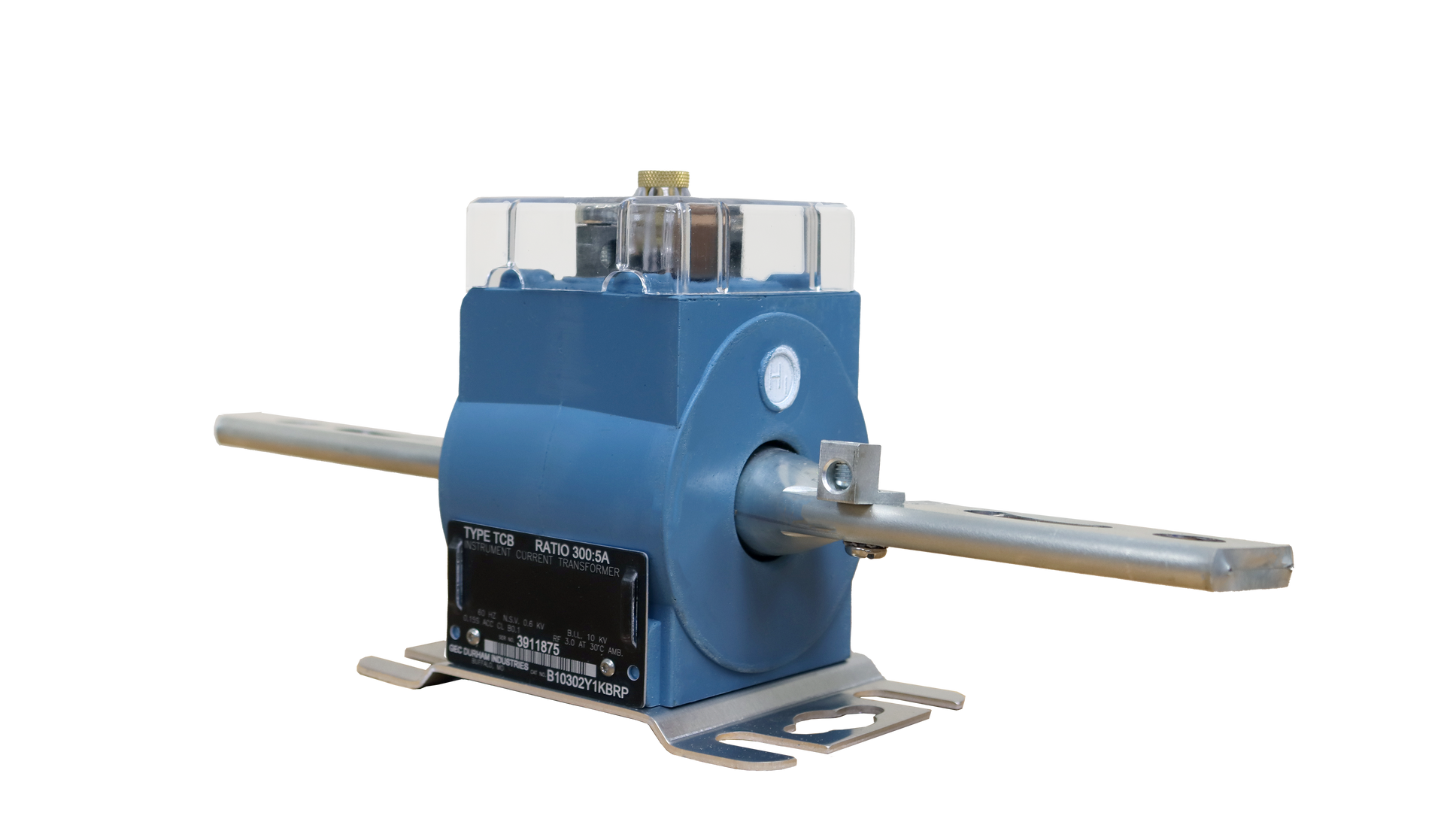

Type TCB | 600 Volt Class | Miniature Bar Type | High Accuracy

Standard Features:

60 Hertz VAC, 10KV BIL.
Clear Sealable Secondary Terminal Cover
Retained Shorting Device
#6-14 Potential Terminal
Tin Plated Copper Bus Bar
Certified Test Record With Each Transformer
Meets IEEE C.57.13.6 Standard for
High-Accuracy Instrument Transformers
Meets ANSI, NEMA, IEEE & EEI Standards

B10602YKBRP
Button

Type TCB - Stud Type Secondary Terminals

Mounting Base Not Included

Model	Primary	Catalog Number	Burden 0.15S Class	0.15% Accuracy 30C	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
TCB61	600	B10602YE	E0.04, E0.2, B0.1, B0.2	30-1200 Amps	2	1.5	7 Lbs.	2
TCB61	600	B10601YE	E0.04, E0.2, B0.1, B0.2	30-798 Amps	1.33	1	5 Lbs	1

Model	Primary	Catalog Number	Burden 0.15S Class	0.15% Accuracy 30C	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
TCB61	600	B10602YKBR	E0.04, E0.2, B0.1, B0.2	30-1200 Amps	2	1.5	7 Lbs.	2
TCB61	600	B10601YKBR	E0.04, E0.2, B0.1, B0.2	30-798 Amps	1.33	1	5 Lbs	1

Model	Primary	Catalog Number	Burden 0.15S Class	0.15% Accuracy 30C	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
TCB61	600	B10602YKH	E0.04, E0.2, B0.1, B0.2	30-1200 Amps	2	1.5	7 Lbs.	6
TCB61	600	B10601YKH	E0.04, E0.2, B0.1, B0.2	30-798 Amps	1.33	1	5 Lbs	5

Type TCB - Pressure Type Secondary Terminals

Aluminum 2” High Mounting Base Included

Model	Primary	Catalog Number	Burden 0.15S Class	0.15% Accuracy 30C	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
TCB61	600	B10602YEP	E0.04, E0.2, B0.1, B0.2	30-1200 Amps	2	1.5	7 Lbs.	2
TCB61	600	B10601YEP	E0.04, E0.2, B0.1, B0.2	30-798 Amps	1.33	1	5 Lbs	1

Model	Primary	Catalog Number	Burden 0.15S Class	0.15% Accuracy 30C	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
TCB61	600	B10602YKBRP	E0.04, E0.2, B0.1, B0.2	30-1200 Amps	2	1.5	7 Lbs.	2
TCB61	600	B10601YKBRP	E0.04, E0.2, B0.1, B0.2	30-798 Amps	1.33	1	5 Lbs	1

Model	Primary	Catalog Number	Burden 0.15S Class	0.15% Accuracy 30C	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
TCB61	600	B10602YKHP	E0.04, E0.2, B0.1, B0.2	30-1200 Amps	2	1.5	7 Lbs.	6
TCB61	600	B10601YKHP	E0.04, E0.2, B0.1, B0.2	30-798 Amps	1.33	1	5 Lbs	5

Type AB | 600 Volt Class | Intermediate Window & Bar | High Accuracy

Standard Features:

60 Hertz VAC, 10KV BIL.
Clear Sealable Secondary Terminal Cover
Retained Shorting Device
Certified Test Record With Each Transformer
Meets IEEE C57.13.6 Standard for
High-Accuracy Instrument Transformers
1% Through Rating Factor

W50600Y1KP
Button
B506051Y1KP
Button

Type AB - Stud & Pressure Type Secondary Terminals

Aluminum Mounting Base Included

Model	Primary	Catalog Number	Burden 0.15S Class	0.15% Accuracy 30C	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
AB6Y	600	W50600Y1K	E0.04, E0.2, B0.1, B0.2, B0.5	6-1800 Amps	3	2	9 Lbs.	1
AB6Y	600	B506051Y1K	E0.04, E0.2, B0.1, B0.2, B0.5	6-1800 Amps	3	2	13 Lbs.	3
AB6Y	600	B506052Y1K	E0.04, E0.2, B0.1, B0.2, B0.5	6-1800 Amps	3	2	13 Lbs	5

Model	Primary	Catalog Number	Burden 0.15S Class	0.15% Accuracy 30C	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
AB6Y	600	W50600Y1KP	E0.04, E0.2, B0.1, B0.2, B0.5	6-1800 Amps	3	2	9 Lbs.	1
AB6Y	600	B506051Y1KP	E0.04, E0.2, B0.1, B0.2, B0.5	6-1800 Amps	3	2	13 Lbs.	3
AB6Y	600	B506052Y1KP	E0.04, E0.2, B0.1, B0.2, B0.5	6-1800 Amps	3	2	13 Lbs	5

Type AB - Stud & Pressure Type Secondary Terminals

1” Aluminum Mounting Base Included

Model	Primary	Catalog Number	Burden 0.15S Class	0.15% Accuracy 30C	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
AB6Y	600	W50600Y1KH	E0.04, E0.2, B0.1, B0.2, B0.5	6-1800 Amps	3	2	9 Lbs.	2
AB6Y	600	B506051Y1KH	E0.04, E0.2, B0.1, B0.2, B0.5	6-1800 Amps	3	2	13 Lbs.	4
AB6Y	600	B506052Y1KH	E0.04, E0.2, B0.1, B0.2, B0.5	6-1800 Amps	3	2	13 Lbs	6

Model	Primary	Catalog Number	Burden 0.15S Class	0.15% Accuracy 30C	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
AB6Y	600	W50600Y1KHP	E0.04, E0.2, B0.1, B0.2, B0.5	6-1800 Amps	3	2	9 Lbs.	2
AB6Y	600	B506051Y1KHP	E0.04, E0.2, B0.1, B0.2, B0.5	6-1800 Amps	3	2	13 Lbs.	4
AB6Y	600	B506052Y1KHP	E0.04, E0.2, B0.1, B0.2, B0.5	6-1800 Amps	3	2	13 Lbs	6

Type AD | 600 Volt Class | Large Window Type 1

Standard Features:

60 Hertz VAC, 10KV BIL.
Clear Sealable Secondary Terminal Cover
Retained Shorting Device
Certified Test Record With Each Transformer
Meets IEEE C57.13.6 Standard for
High-Accuracy Instrument Transformers
Meets ANSI, NEMA, IEEE & EEI Standards

W82000YMP
Button

Type AD - Stud & Pressure Type Secondary Terminals

Mounting Base Not Included

Model	Primary	Catalog Number	Burden 0.15S Class	0.15% Accuracy 30C	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
AD20Y	2000	W82000YE	E0.04, E0.2, B0.1, B0.2, B0.5, B0.9	100-5000 Amps	2.5	1.75	17 Lbs.	1

Model	Primary	Catalog Number	Burden 0.15S Class	0.15% Accuracy 30C	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
AD20Y	2000	W82000YEP	E0.04, E0.2, B0.1, B0.2, B0.5, B0.9	100-5000 Amps	2.5	1.75	17 Lbs.	1

Type AD - Stud & Pressure Type Secondary Terminals

Stainless Steel Mounting Base Included

Model	Primary	Catalog Number	Burden 0.15S Class	0.15% Accuracy 30C	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
AD20Y	2000	W82000YM	E0.04, E0.2, B0.1, B0.2, B0.5, B0.9	100-5000 Amps	2.5	1.75	17 Lbs.	2

Model	Primary	Catalog Number	Burden 0.15S Class	0.15% Accuracy 30C	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
AD20Y	2000	W82000YMP	E0.04, E0.2, B0.1, B0.2, B0.5, B0.9	100-5000 Amps	2.5	1.75	17 Lbs.	2

Type AB | 600 Volt Class | Intermediate Window Type

Standard Features:

60 Hertz VAC, 10KV BIL.
Clear Sealable Secondary Terminal Cover
Retained Shorting Device
Certified Test Record With Each Transformer
Meets IEEE C57.13.6 Standard for
High-Accuracy Instrument Transformers
Meets ANSI, NEMA, IEEE & EEI Standards

120YKP
Button

Type AB - Stud Type Secondary Terminals

Aluminum Low Mounting Base Included

Model	Primary	Catalog Number	Burden 0.3S Class	0.6% Accuracy 30C	0.3% Accuracy 30C	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
AB2Y	200	120YK	0.2	8-79 Amps	80-800 Amps	4	3	11 Lbs.	1

Model	Primary	Catalog Number	Burden 0.3S Class	0.6% Accuracy 30C	0.3% Accuracy 30C	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
AB2Y	200	120YKH	0.2	8-79 Amps	80-800 Amps	4	3	11 Lbs.	2

Type AB - Pressure Type Secondary Terminals

Aluminum Low Mounting Base Included

Model	Primary	Catalog Number	Burden 0.3S Class	0.6% Accuracy 30C	0.3% Accuracy 30C	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
AB2Y	200	445YKP	0.2	8-79 Amps	80-800 Amps	4	3	11 Lbs.	1
AB5Y	500	120YKP	0.5	20-199 Amps	200-2000 Amps	4	3	7 Lbs.	5

Model	Primary	Catalog Number	Burden 0.3S Class	0.6% Accuracy 30C	0.3% Accuracy 30C	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
AB2Y	200	445YKHP	0.2	8-79 Amps	80-800 Amps	4	3	11 Lbs.	2

Type AB | 600 Volt Class | Intermediate Bar Type

Standard Features:

60 Hertz VAC, 10KV BIL.
Clear Sealable Secondary Terminal Cover
Retained Shorting Device
Certified Test Record With Each Transformer
Meets IEEE C57.13.6 Standard for
High-Accuracy Instrument Transformers
Meets ANSI, NEMA, IEEE & EEI Standards

446YKP
Button

Type AB - Stud Type Secondary Terminals

Aluminum Low Mounting Base Included

Model	Primary	Catalog Number	Burden 0.3S Class	0.6% Accuracy 30C	0.3% Accuracy 30C	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
AB21Y	200	446YK	0.2	8-79 Amps	80-800 Amps	4	3	13 Lbs.	2

Model	Primary	Catalog Number	Burden 0.3S Class	0.6% Accuracy 30C	0.3% Accuracy 30C	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
AB21Y	200	446YKH	0.2	8-79 Amps	80-800 Amps	4	3	13 Lbs.	4

Type AB - Pressure Type Secondary Terminals

Aluminum Low Mounting Base Included

Model	Primary	Catalog Number	Burden 0.3S Class	0.6% Accuracy 30C	0.3% Accuracy 30C	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
AB21Y	200	446YKP	0.2	8-79 Amps	80-800 Amps	4	3	13 Lbs.	2
AB51Y	500	276YKP	0.5	20-199 Amps	200-2000 Amps	4	3	11 Lbs.	5
AB51Y	500	121YKP	0.5	20-199 Amps	200-2000 Amps	4	3	10 Lbs.	6

Model	Primary	Catalog Number	Burden 0.3S Class	0.6% Accuracy 30C	0.3% Accuracy 30C	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
AB21Y	200	446YKHP	0.2	8-79 Amps	80-800 Amps	4	3	13 Lbs.	4

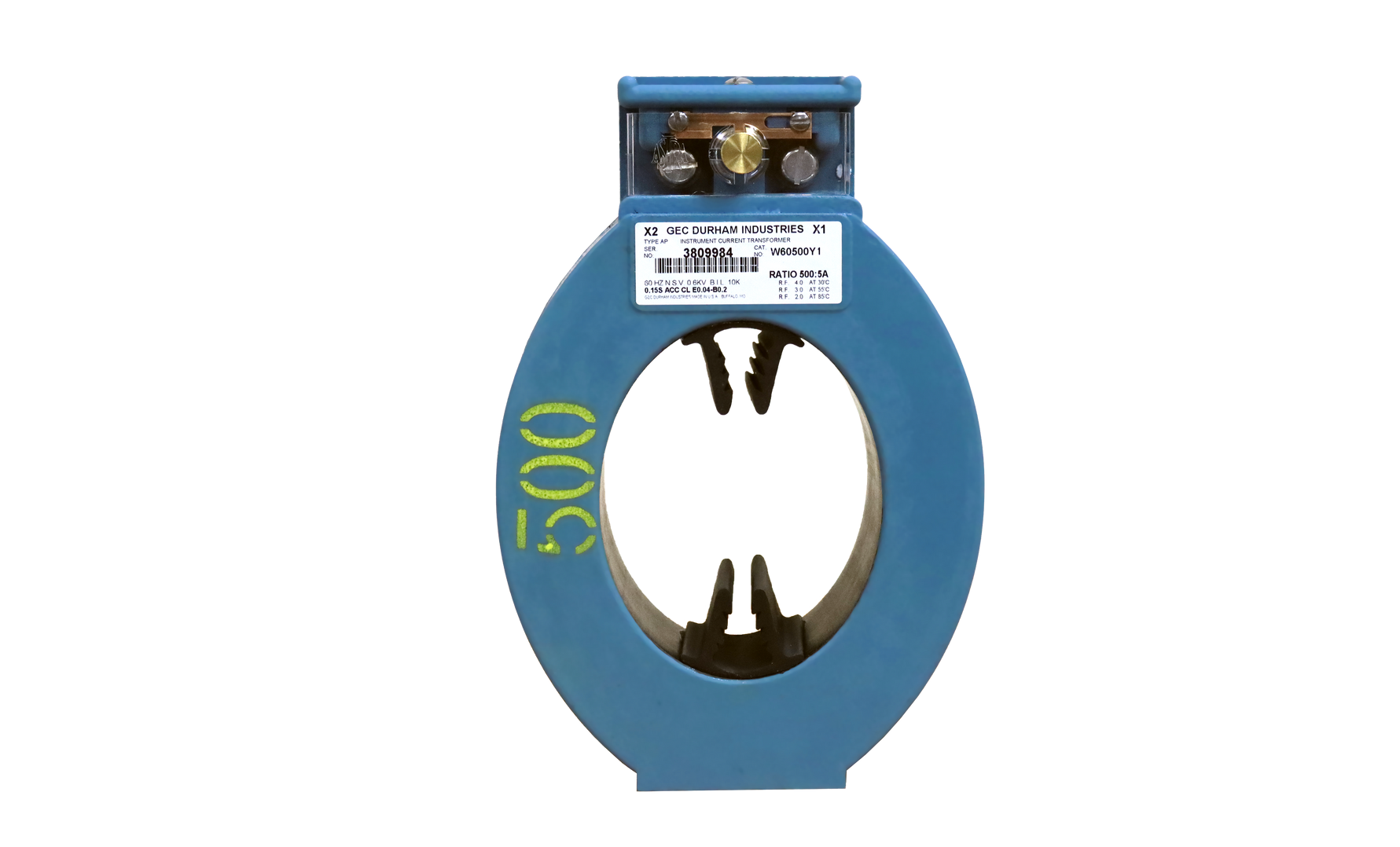

Type AP | 600 Volt Class | Pad Mount Bushing Style

Standard Features:

60 Hertz VAC, 10KV BIL.
Clear Sealable Secondary Terminal Cover
Retained Shorting Device
“Grabber” for Stabilizing Unit On A Bus Bar
Certified Test Record With Each Transformer
Meets IEEE C57.13.6 Standard for
High-Accuracy Instrument Transformers
Meets ANSI, NEMA, IEEE & EEI Standards

601Y
Button

Type AP - Pressure Type Secondary Terminals

Mounting Base Not Included

Model	Primary	Catalog Number	Burden 0.3S Class	0.6% Accuracy 30C	0.3% Accuracy 30C	Rating Factor 30C	Rating Factor 55C	Rating Factor 85C	Weight	Drawing Figure
AP2Y	200	601Y	0.1	8-79 Amps	80-800 Amps	4	4	4	7 Lbs.	2
AP4Y	400	603Y	0.2	16-159 Amps	160-1600 Amps	4	4	4	7 Lbs.	2
AP5Y	500	604Y	0.5	20-199 Amps	200-2000 Amps	4	4	4	7 Lbs.	2
AP15Y	1500	609Y	0.5	60-599 Amps	600-3000 Amps	2	2	2	7 Lbs.	2

The Eliminator

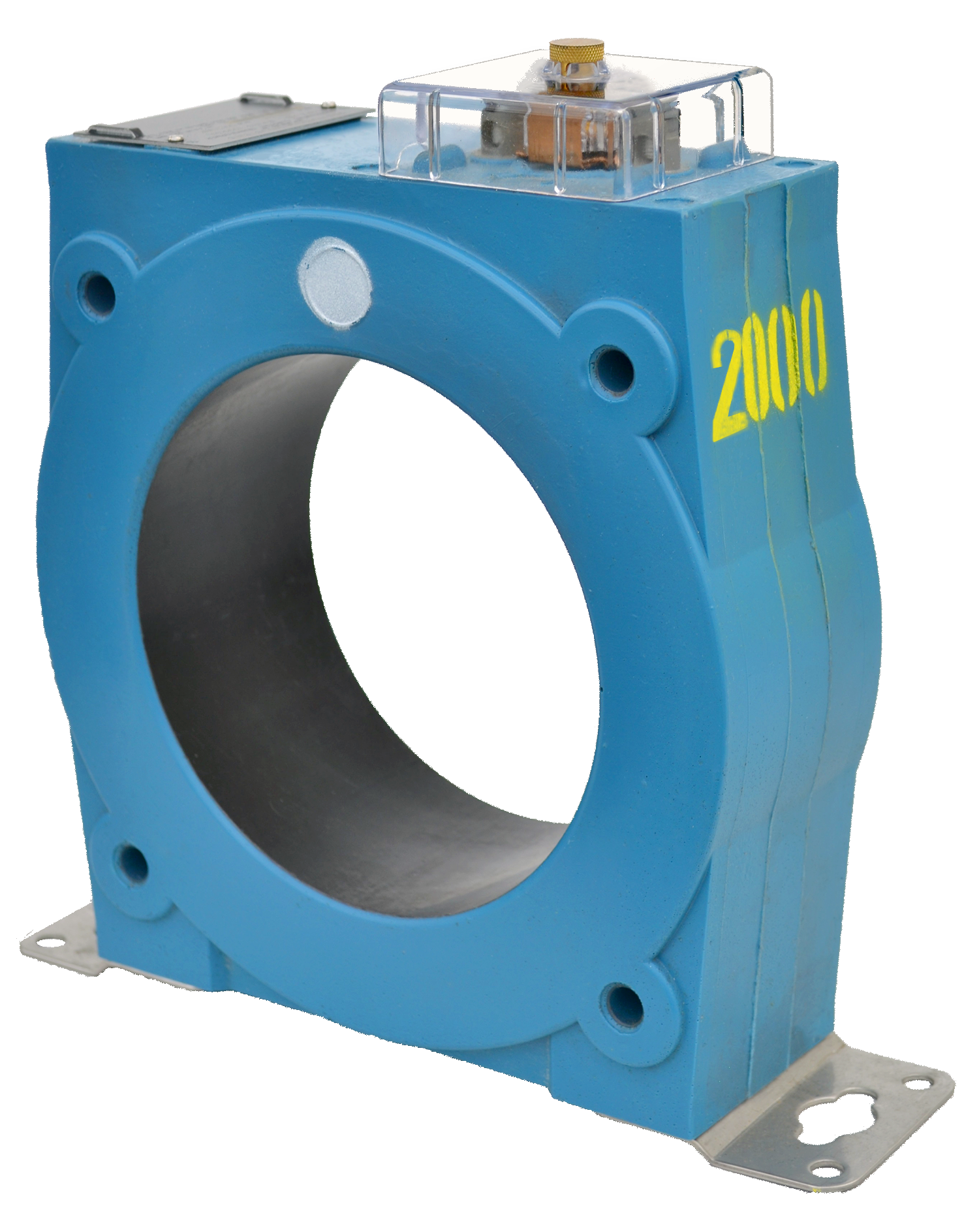

Type AD | 600 Volt Class | Large Window Type 1

Standard Features:
60 Hertz VAC, 10KV BIL.
Clear Sealable Secondary Terminal Cover
Retained Shorting Device
“Grabber” for Stabilizing Unit On A Bus Bar
Certified Test Record With Each Transformer
Meets IEEE C57.13.6 Standard for
High-Accuracy Instrument Transformers
Meets ANSI, NEMA, IEEE & EEI Standards

562YMP
Button

Type AD - Stud & Pressure Type Secondary Terminals

Mounting Base Included

Model	Primary	Catalog Number	Burden 0.3S Class	0.6% Accuracy 30C	0.3% Accuracy 30C	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
AD10Y	1000	562YM	0.5	40-399 Amps	400-4000 Amps	4	3	17 Lbs.	2

Model	Primary	Catalog Number	Burden 0.3S Class	0.6% Accuracy 30C	0.3% Accuracy 30C	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
AD10Y	1000	562YMP	0.5	40-399 Amps	400-4000 Amp	4	3	17 Lbs.	1

Type TCW | 600 Volt Class | Miniature Window Type

Standard Features:

60 Hertz VAC, 10KV BIL.
Clear Sealable Secondary Terminal Cover
Retained Shorting Device
Certified Test Record With Each Transformer
Meets IEEE C57.13.6 Standard for
High-Accuracy Instrument Transformers
Meets ANSI, NEMA, IEEE & EEI Standards

198KBRP
Button

Type TCW - Stud & Pressure Type Secondary Terminals

Mounting Base Not Included

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
TCW1	100	197E	0.2	4	4	5 Lbs.	1
TCW2	200	198E	0.2	3	2	4 Lbs.	4
TCW3	300	230E	0.2	3	2	4 Lbs.	4
TCW4	400	231E	0.2	2	2	4 Lbs.	4

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
TCW1	100	197EP	0.2	4	4	5 Lbs.	1
TCW2	200	198EP	0.2	3	2	4 Lbs.	4
TCW3	300	230EP	0.2	3	2	4 Lbs.	4
TCW4	400	231EP	0.2	2	2	4 Lbs.	4

Type TCW - Stud & Pressure Type Secondary Terminals

Slotted Aluminum Low Mounting Base Included

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
TCW1	100	197KBR	0.2	4	4	5 Lbs.	2
TCW2	200	198KBR	0.2	3	2	4 Lbs.	5
TCW3	300	230KBR	0.2	3	2	4 Lbs.	5
TCW4	400	231KBR	0.2	2	2	4 Lbs.	5

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
TCW1	100	197KBRP	0.2	4	4	5 Lbs.	5
TCW2	200	198KBRP	0.2	3	2	4 Lbs.	4
TCW3	300	230KBRP	0.2	3	2	4 Lbs.	4
TCW4	400	231KBRP	0.2	2	2	4 Lbs.	4

Type TCW - Stud & Pressure Type Secondary Terminals

Aluminum 2” High Mounting Base Included

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
TCW1	100	197KH	0.2	4	4	5 Lbs.	3
TCW2	200	198KH	0.2	3	2	4 Lbs.	6
TCW3	300	230KH	0.2	3	2	4 Lbs.	6
TCW4	400	231KH	0.2	2	2	4 Lbs.	6

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
TCW1	100	197KHP	0.2	4	4	5 Lbs.	3
TCW2	200	198KHP	0.2	3	2	4 Lbs.	6
TCW3	300	230KHP	0.2	3	2	4 Lbs.	6
TCW4	400	231KHP	0.2	2	2	4 Lbs.	6

Type TFW | 600 Volt Class | Miniature Window Type

Standard Features:

60 Hertz VAC, 10KV BIL.
Clear Sealable Secondary Terminal Cover
Retained Shorting Device
Certified Test Record With Each Transformer
Meets IEEE C57.13.6 Standard for
High-Accuracy Instrument Transformers
Meets ANSI, NEMA, IEEE & EEI Standards

350KBRP
Button

Type TFW - Stud Type Secondary Terminals

Mounting Base Not Included

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
TFW1	100	349E	0.1	3	3	5 Lbs.	1
TFW2	200	350E	0.5	3	2.4	4 Lbs.	1
TFW3	300	351ER	0.5	3	2.4	4 Lbs.	4
TFW4	400	352E	0.5	2	1.5	4 Lbs.	4

Type TFW - Stud Type Secondary Terminals

Aluminum Low Mounting Base Included

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
TFW1	100	349KBR	0.1	3	3	5 Lbs.	2
TFW2	200	350KBR	0.5	3	2.4	4 Lbs.	2
TFW3	300	351KBR	0.5	3	2.4	4 Lbs.	5
TFW4	400	352KBR	0.5	2	1.5	4 Lbs.	5

Type TFW - Stud Type Secondary Terminals

Aluminum 2" High Mounting Base Included

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
TFW1	100	349KH	0.1	3	3	5 Lbs.	3
TFW2	200	350KH	0.5	3	3	4 Lbs.	3
TFW3	300	351KH	0.5	3	3	4 Lbs.	6
TFW4	400	352KH	0.5	2	3	4 Lbs.	6

Type TFW - Pressure Type Secondary Terminals

Mounting Base Not Included

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
TFW1	100	349EP	0.1	3	3	5 Lbs.	1
TFW2	200	350EP	0.5	3	2.4	4 Lbs.	1
TFW3	300	351EP	0.5	3	2.4	4 Lbs.	4
TFW4	400	352EP	0.5	2	1.5	4 Lbs.	4

Type TFW - Pressure Type Secondary Terminals

Slotted Aluminum Low Mounting Base Included

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
TFW1	100	349KBRP	0.1	3	3	5 Lbs.	2
TFW2	200	350KBRP	0.5	3	2.4	4 Lbs.	2
TFW3	300	351KBRP	0.5	3	2.4	4 Lbs.	5
TFW4	400	352KBRP	0.5	2	1.5	4 Lbs.	5

Type TFW - Pressure Type Secondary Terminals

Aluminum 2” High Mounting Base Included

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
TFW1	100	349KHP	0.1	3	3	5 Lbs.	3
TFW2	200	350KHP	0.5	3	2.4	4 Lbs.	3
TFW3	300	351KHP	0.5	3	2.4	4 Lbs.	6
TFW4	400	352KHP	0.5	2	1.5	4 Lbs.	6

Type TCB |600 Volt Class | Miniature Bar Type

Standard Features:

60 Hertz VAC, 10KV BIL.
Clear Sealable Secondary Terminal Cover
Retained Shorting Device
#6-14 Potential Terminal
Tin Plated Copper Bus Bar
Certified Test Record With Each Transformer
Meets ANSI, NEMA, IEEE & EEI Standards

199KBRP
Button

Type TCB - Stud & Pressure Type Secondary Terminals

Mounting Base Not Included

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
TCB11	100	173E	0.2	4	3	5 Lbs.	1
TCB21	200	199E	0.2	2	1.5	4 Lbs.	2
TCB31	300	233E	0.2	2	1.5	6 Lbs.	7
TCB41	400	234E	0.2	2	1.5	6 Lbs.	7
TCB61	600	235E	0.2	2	1.5	7 Lbs.	8
TCB81	800	229E	0.2	1.5	1.1	7 Lbs.	8

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
TCB11	100	173EP	0.2	4	3	5 Lbs.	1
TCB21	200	199EP	0.2	2	1.5	4 Lbs.	2
TCB31	300	233EP	0.2	2	1.5	6 Lbs.	7
TCB41	400	234EP	0.2	2	1.5	6 Lbs.	7
TCB61	600	235EP	0.2	2	1.5	7 Lbs.	8
TCB81	800	229EP	0.2	1.5	1.1	7 Lbs.	8

Type TCB - Stud & Pressure Type Secondary Terminals

Slotted Aluminum Low Mounting Base Included

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
TCB11	100	173KBR	0.2	4	3	5 Lbs.	3
TCB21	200	199KBR	0.2	2	1.5	4 Lbs.	4
TCB31	300	233KBR	0.2	2	1.5	6 Lbs.	9
TCB41	400	234KBR	0.2	2	1.5	6 Lbs.	9
TCB61	600	235KBR	0.2	2	1.5	7 Lbs.	10
TCB81	800	229KBR	0.2	1.5	1.1	7 Lbs.	10

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
TCB11	100	173KBRP	0.2	4	3	5 Lbs.	3
TCB21	200	199KBRP	0.2	2	1.5	4 Lbs.	4
TCB31	300	233KBRP	0.2	2	1.5	6 Lbs.	9
TCB41	400	234KBRP	0.2	2	1.5	6 Lbs.	9
TCB61	600	235KBRP	0.2	2	1.5	7 Lbs.	10
TCB81	800	229KBRP	0.2	1.5	1.1	7 Lbs.	10

Type TCB - Stud & Pressure Type Secondary Terminals

Aluminum 2" High Mounting Base Included

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
TCB11	100	173KH	0.2	4	3	5 Lbs.	5
TCB21	200	199KH	0.2	2	1.5	4 Lbs.	6
TCB31	300	233KH	0.2	2	1.5	6 Lbs.	6
TCB41	400	234KH	0.2	2	1.5	6 Lbs.	11
TCB61	600	235KH	0.2	2	1.5	7 Lbs.	12
TCB81	800	229KH	0.2	1.5	1.1	7 Lbs.	12

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
TCB11	100	173KHP	0.2	4	3	5 Lbs.	5
TCB21	200	199KHP	0.2	2	1.5	4 Lbs.	6
TCB31	300	233KHP	0.2	2	1.5	6 Lbs.	11
TCB41	400	234KHP	0.2	2	1.5	6 Lbs.	11
TCB61	600	235KHP	0.2	2	1.5	7 Lbs.	12
TCB81	800	229KHP	0.2	1.5	1.1	7 Lbs.	12

Type TAB |600 Volt Class | Miniature Bar Type

Standard Features:

60 Hertz VAC, 10KV BIL.
Clear Sealable Secondary Terminal Cover
Retained Shorting Device
#6-14 Potential Terminal
Tin Plated Copper Bus Bar
Certified Test Record With Each Transformer
Meets ANSI, NEMA, IEEE & EEI Standards

208KBRP
Button

Type TAB - Stud & Pressure Type Secondary Terminals

Mounting Base Not Included

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
TAB21	200	205E	0.5	2	1.5	5 Lbs.	1
TAB31	300	206E	0.5	2	1.5	6 Lbs.	2
TAB41	400	207E	0.5	2	1.5	6 Lbs.	2
TAB61	600	208E	0.5	2	1.5	7 Lbs.	7
TAB81	800	209E	0.5	1.5	1.1	7 Lbs.	7

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
TAB21	200	205EP	0.5	2	1.5	5 Lbs.	1
TAB31	300	206EP	0.5	2	1.5	6 Lbs.	2
TAB41	400	207EP	0.5	2	1.5	6 Lbs.	2
TAB61	600	208EP	0.5	2	1.5	7 Lbs.	7
TAB81	800	209EP	0.5	1.5	1.1	7 Lbs.	7

Type TAB - Stud & Pressure Type Secondary Terminals

Slotted Aluminum Low Mounting Base Not Included

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
TAB21	200	199KBR	0.5	2	1.5	5 Lbs.	3
TAB31	300	233KBR	0.5	2	1.5	6 Lbs.	4
TAB41	400	234KBR	0.5	2	1.5	6 Lbs.	4
TAB61	600	235KBR	0.5	2	1.5	7 Lbs.	8
TAB81	800	229KBR	0.5	1.5	1.1	7 Lbs.	8

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
TAB21	200	205KBRP	0.5	2	1.5	5 Lbs.	3
TAB31	300	206KBRP	0.5	2	1.5	6 Lbs.	4
TAB41	400	207KBRP	0.5	2	1.5	6 Lbs.	4
TAB61	600	208KBRP	0.5	2	1.5	7 Lbs.	8
TAB81	800	209KBRP	0.5	1.5	1.1	7 Lbs.	8

Type TAB - Stud & Pressure Type Secondary Terminals

Aluminum 2” High Mounting Base Included

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
TAB21	200	205KH	0.5	2	1.5	5 Lbs.	5
TAB31	300	206KH	0.5	2	1.5	6 Lbs.	6
TAB41	400	207KH	0.5	2	1.5	6 Lbs.	6
TAB61	600	208KH	0.5	2	1.5	7 Lbs.	9
TAB81	800	209KH	0.5	1.5	1.1	7 Lbs.	9

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
TAB21	200	205KHP	0.5	2	1.5	5 Lbs.	5
TAB31	300	206KHP	0.5	2	1.5	6 Lbs.	6
TAB41	400	207KHP	0.5	2	1.5	6 Lbs.	6
TAB61	600	208KHP	0.5	2	1.5	7 Lbs.	9
TAB81	800	209KHP	0.5	1.5	1.1	7 Lbs.	9

Type AB |600 Volt Class | Intermediate Window Type

Standard Features:

60 Hertz VAC, 10KV BIL.
Clear Sealable Secondary Terminal Cover
Retained Shorting Device
Tin Plated Copper Bus Bar
Certified Test Record With Each Transformer
Meets ANSI, NEMA, IEEE & EEI Standards

100KP
Button

Type AB- Stud Type Secondary Terminals

Mounting Base Not Included

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
AB1	100	93K	0.1	4	4	11 Lbs.	1
AB1	100	99K	0.2	4	4	13 Lbs.	3
AB2	200	100K	0.5	4	4	11 Lbs.	1
AB3	300	101K	0.5	3	2.4	11 Lbs.	1
AB4	400	102K	0.5	4	3	7 Lbs.	5
AB6	600	103K	0.5	2	1.5	6 Lbs.	5
AB8	800	104K	0.5	2	1.5	6 Lbs.	5

Dual Ratio

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
AB2/4	200/400	110K	0.5/0.5	4.0/2.0	3.0/1.5	11 Lbs.	1
AB3/6	300/600	111K	0.5/0.5	2.0/2.0	1.5/1.5	7 Lbs.	5
AB4/8	400/800	112K	0.5/0.5	2.0/2.0	1.5/1.5	7 Lbs.	5

Type AB- Stud Type Secondary Terminals

1" High Mounting Base Included

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
AB1	100	93KH	0.1	4	4	11 Lbs.	2
AB1	100	99KH	0.2	4	4	13 Lbs.	4
AB2	200	100KH	0.5	4	4	11 Lbs.	2
AB3	300	101KH	0.5	3	2.4	11 Lbs.	2
AB4	400	102KH	0.5	4	3	7 Lbs.	6
AB6	600	103KH	0.5	2	1.5	6 Lbs.	6
AB8	800	104KH	0.5	2	1.5	6 Lbs.	6

Dual Ratio

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
AB2/4	200/400	110KH	0.5/0.5	4.0/2.0	3.0/1.5	11 Lbs.	2
AB3/6	300/600	111KH	0.5/0.5	2.0/2.0	1.5/1.5	7 Lbs.	6
AB4/8	400/800	112KH	0.5/0.5	2.0/2.0	1.5/1.5	7 Lbs.	6

Type AB- Pressure Type Secondary Terminals

Aluminum Low Mounting Base Included

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
AB1	100	93KP	0.1	4	4	11 Lbs.	1
AB1	100	99KP	0.2	4	4	13 Lbs.	3
AB2	200	100KP	0.5	4	4	11 Lbs.	1
AB3	300	101KP	0.5	3	2.4	11 Lbs.	1
AB4	400	102KP	0.5	4	3	7 Lbs.	5
AB6	600	103KP	0.5	2	1.5	6 Lbs.	5
AB8	800	104KP	0.5	2	1.5	6 Lbs.	5

Dual Ratio

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
AB2/4	200/400	110KP	0.5/0.5	4.0/2.0	3.0/1.5	11 Lbs.	1
AB3/6	300/600	111KP	0.5/0.5	2.0/2.0	1.5/1.5	7 Lbs.	5
AB4/8	400/800	112KP	0.5/0.5	2.0/2.0	1.5/1.5	7 Lbs.	5

Type AB- Pressure Type Secondary Terminals

1" High Mounting Base Included

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
AB1	100	93KHP	0.1	4	4	11 Lbs.	2
AB1	100	99KHP	0.2	4	4	13 Lbs.	4
AB2	200	100KHP	0.5	4	4	11 Lbs.	2
AB3	300	101KHP	0.5	3	2.4	11 Lbs.	2
AB4	400	102KHP	0.5	4	3	7 Lbs.	6
AB6	600	103KHP	0.5	2	1.5	6 Lbs.	6
AB8	800	104KHP	0.5	2	1.5	6 Lbs.	6

Dual Ratio

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
AB2/4	200/400	110K	0.5/0.5	4.0/2.0	3.0/1.5	11 Lbs.	2
AB3/6	300/600	111K	0.5/0.5	2.0/2.0	1.5/1.5	7 Lbs.	6
AB4/8	400/800	112K	0.5/0.5	2.0/2.0	1.5/1.5	7 Lbs.	6

Type AB |600 Volt Class | Intermediate Bar Type

Standard Features:

60 Hertz VAC, 10KV BIL.
Clear Sealable Secondary Terminal Cover
Retained Shorting Device
Tin Plated Copper Bus Bar
#6-14 Potential Terminal
Certified Test Record With Each Transformer
Meets ANSI, NEMA, IEEE & EEI Standards

107KP
Button

Type AB- Stud Type Secondary Terminals

Mounting Base Not Included

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
AB11	100	124K	0.1	4	4	11 Lbs.	2
AB11	100	122K	0.2	4	4	15 Lbs.	1
AB21	200	105K	0.5	4	4	13 Lbs.	2
AB31	300	106K	0.5	2	1.5	13 Lbs.	2
AB41	400	107K	0.5	4	3	11 Lbs.	5
AB61	600	108K	0.5	2	1.5	10 Lbs.	5
AB81	800	109K	0.5	2	1.5	10 Lbs.	5
AB101	1000	134K	1.8	2	1.5	10 Lbs.	9
AB121	1200	135K	1.8	1.5	1.1	10 Lbs.	6
AB151	1500	136K	1.8	1.5	1.1	12 Lbs.	9
AB201	2000	137K	1.8	1.5	1.1	18 Lbs.	10
AB301	3000	138K	1.8	1.33	1	20 Lbs.	13
AB401	4000	139K	1.8	1	0.7	21 Lbs.	13

Dual Ratio

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
AB2/41	200/400	113K	0.5/0.5	4.0/2.0	3.0/1.5	13 Lbs.	2
AB3/61	300/600	114K	0.5/0.5	2.0/2.0	1.5/1.5	11 Lbs.	5
AB4/81	400/800	115K	0.5/0.5	2.0/2.0	1.5/1.5	11 Lbs.	5
AB10/201	1000/2000	143K	0.5/1.8	2.0/1.5	1.5/1.1	18 Lbs.	10
AB15/301	1500/3000	144K	1.8/1.8	1.5/1.33	1.1/1.0	21 Lbs.	13
AB20/401	2000/4000	145K	1.8/1.8	1.5/1.0	1.1/0.7	21 lbs.	13

Type AB- Removable Bus Bar w/ Stud Type Secondary Terminals

Aluminum 1" High Mounting Base Included

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
AB11	100	124KH	0.1	4	4	11 Lbs.	4
AB11	100	122KH	0.2	4	4	15 Lbs.	3
AB21	200	105KH	0.5	4	4	13 Lbs.	4
AB31	300	106KH	0.5	2	1.5	13 Lbs.	4
AB41	400	107KH	0.5	4	3	11 Lbs.	7
AB61	600	108KH	0.5	2	1.5	10 Lbs.	7
AB81	800	109KH	0.5	2	1.5	10 Lbs.	7
AB101	1000	134KH	1.8	2	1.5	10 Lbs.	11
AB121	1200	135KH	1.8	1.5	1.1	10 Lbs.	8
AB151	1500	136KH	1.8	1.5	1.1	12 Lbs.	11
AB201	2000	137KH	1.8	1.5	1.1	18 Lbs.	12
AB301	3000	138KH	1.8	1.33	1	20 Lbs.	14
AB401	4000	139KH	1.8	1	0.7	21 Lbs.	14

Dual Ratio

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
AB2/41	200/400	113KH	0.5/0.5	4.0/2.0	3.0/1.5	13 Lbs.	4
AB3/61	300/600	114KH	0.5/0.5	2.0/2.0	1.5/1.5	11 Lbs.	7
AB4/81	400/800	115KH	0.5/0.5	2.0/2.0	1.5/1.5	11 Lbs.	7
AB10/201	1000/2000	143KH	0.5/1.8	2.0/1.5	1.5/1.1	18 Lbs.	12
AB15/301	1500/3000	144KH	1.8/1.8	1.5/1.33	1.1/1.0	21 Lbs.	14
AB20/401	2000/4000	145KH	1.8/1.8	1.5/1.0	1.1/0.7	21 lbs.	14

Type AB- Removable Bus Bar w/ Pressure Type Secondary Terminals

Aluminum Low Mounting Base Included

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
AB11	100	124KP	0.1	4.0	4.0	11 Lbs.	2
AB11	100	122KP	0.2	4.0	4.0	15 Lbs.	1
AB21	200	105KP	0.5	4.0	4.0	13 Lbs.	2
AB31	300	106KP	0.5	2.0	1.5	13 Lbs.	2
AB41	400	107KP	0.5	4.0	3.0	11 Lbs.	5
AB61	600	108KP	0.5	2.0	1.5	10 Lbs.	5
AB81	800	109KP	0.5	2.0	1.5	10 Lbs.	5
AB101	1000	134KP	1.8	2.0	1.5	10 Lbs.	9
AB121	1200	135KP	1.8	1.5	1.1	10 Lbs.	6
AB151	1500	136KP	1.8	1.5	1.1	12 Lbs.	9
AB201	2000	137KP	1.8	1.5	1.1	18 Lbs.	10
AB301	3000	138KP	1.8	1.33	1.0	20 Lbs.	13
AB401	4000	139KP	1.8	1.0	0.7	21 Lbs.	13

Dual Ratio

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
AB2/41	200/400	113KP	0.5/0.5	4.0/2.0	3.0/1.5	13 Lbs.	2
AB3/61	300/600	114KP	0.5/0.5	2.0/2.0	1.5/1.5	11 Lbs.	5
AB4/81	400/800	115KP	0.5/0.5	2.0/2.0	1.5/1.5	11 Lbs.	5
AB10/201	1000/2000	143KP	0.5/1.8	2.0/1.5	1.5/1.1	18 Lbs.	10
AB15/301	1500/3000	144KP	1.8/1.8	1.5/1.33	1.1/1.0	21 Lbs.	13
AB20/401	2000/4000	145KP	1.8/1.8	1.5/1.0	1.1/0.7	21 lbs.	13

Type AB- Removable Bus Bar w/ Pressure Type Secondary Terminals

Aluminum 1" High Mounting Base Included

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
AB11	100	124KHP	0.1	4	4	11 Lbs.	4
AB11	100	122KHP	0.2	4	4	15 Lbs.	3
AB21	200	105KHP	0.5	4	4	13 Lbs.	4
AB31	300	106KHP	0.5	2	1.5	13 Lbs.	4
AB41	400	107KHP	0.5	4	3	11 Lbs.	7
AB61	600	108KHP	0.5	2	1.5	10 Lbs.	7
AB81	800	109KHP	0.5	2	1.5	10 Lbs.	7
AB101	1000	134KHP	1.8	2	1.5	10 Lbs.	11
AB121	1200	135KHP	1.8	1.5	1.1	10 Lbs.	8
AB151	1500	136KHP	1.8	1.5	1.1	12 Lbs.	11
AB201	2000	137KHP	1.8	1.5	1.1	18 Lbs.	12
AB301	3000	138KHP	1.8	1.33	1	20 Lbs.	14
AB401	4000	139KHP	1.8	1	0.7	21 Lbs.	14

Dual Ratio

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
AB2/41	200/400	113KHP	0.5/0.5	4.0/2.0	3.0/1.5	13 Lbs.	4
AB3/61	300/600	114KHP	0.5/0.5	2.0/2.0	1.5/1.5	11 Lbs.	7
AB4/81	400/800	115KHP	0.5/0.5	2.0/2.0	1.5/1.5	11 Lbs.	7
AB10/201	1000/2000	143KHP	0.5/1.8	2.0/1.5	1.5/1.1	18 Lbs.	12
AB15/301	1500/3000	144KHP	1.8/1.8	1.5/1.33	1.1/1.0	21 Lbs.	14
AB20/401	2000/4000	145KHP	1.8/1.8	1.5/1.0	1.1/0.7	21 lbs.	14

Type AP | 600 Volt Class | Pad Mount Bushing Style

Standard Features:

60 Hertz VAC, 10KV BIL.
Clear Sealable Secondary Terminal Cover
Retained Shorting Device
Tin Plated Copper Bus Bar
#6-14 Potential Terminal
Certified Test Record With Each Transformer
Meets ANSI, NEMA, IEEE & EEI Standards

601NE
Button

Type AP- Pressure Type Secondary Terminals

Mounting Base Not Included

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Rating Factor 85C	Weight	Drawing Figure
AP2	200	601	0.1	3	4	3	7 Lbs.	1
AP2A	200	601A	0.1	4	4	4	7 Lbs.	1
APN2	200	601N	0.2	3	3	3	9 Lbs.	2
APNE2	200	601NE	0.2	4	4	4	9 Lbs.	2
AP3	300	602	0.2	3	3	3	7 Lbs.	1
AP4	400	603	0.2	4	4	4	7 Lbs.	1
APN4	400	603N	0.2	4	4	4	7 Lbs.	1
AP5	500	604	0.5	3	3	3	7 Lbs.	1
AP6	600	605	0.5	3	3	3	7 Lbs.	1
AP8	800	606	0.5	3	2.5	2.5	7 Lbs.	1
AP10	1000	607	0.5	2	2	2	7 Lbs.	1
AP12	1200	608	0.9	2	2	2	7 Lbs.	1
AP15	1500	609	1.8	2	2	2	7 Lbs.	1
AP20	2000	610	1.5	1	1.5	1.5	7 Lbs.	1
AP30	3000	611	1.8	1.33	1.33	1.33	7 Lbs.	1
AP40	4000	612	1.8	1	1	1	9 Lbs.	2

Type AD|600 Volt Class | Large Window Type 1

Standard Features:

60 Hertz VAC, 10KV BIL.
Clear Sealable Secondary Terminal Cover
Retained Shorting Device
Certified Test Record With Each Transformer
Meets ANSI, NEMA, IEEE & EEI Standards

554EP
Button

Type AD - Stud Type Secondary Terminals

Mounting Base Not Included

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
AD2	200	522E	0.2	4	4	17 Lbs.	1
AD4	400	554E	0.2	4	3	17 Lbs.	1
AD6	600	555E	0.5	3	2.4	17 Lbs.	1
AD8	800	556E	0.5	2	1.5	17 Lbs.	1
AD10	1000	562E	0.5	2	1.5	17 Lbs.	1
AD12	1200	557E	0.9	2	1.5	17 Lbs.	1
AD15	1500	558E	0.9	3	2.4	17 Lbs.	1
AD20	2000	559E	1.8	2	1.5	17 Lbs.	1
AD30	3000	560E	1.8	1.5	1.1	17 Lbs.	1
AD40	4000	561E	1.8	1.5	1.1	17 Lbs.	1

Dual Ratio

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
AD6/12	600/1200	564E	0.5/0.9	3.0/2.0	2.4/1.5	17 Lbs.	1
AD8/16	800/1600	565E	0.5/0.9	2.0/2.0	1.5/1.5	17 Lbs.	1
AD10/20	1000/2000	571E	0.5/1.8	2.0/2.0	1.5/1.5	17 Lbs.	1
AD15/30	1500/3000	572E	0.9/1.8	2.0/1.5	1.5/1.0	17 Lbs.	1
AD20/40	2000/4000	573E	1.8/1.8	2.0/1.5	1.5/1.0	17 Lbs.	1

Type AD - Stud Type Secondary Terminals

2 Piece Stainless Steel Mounting Base Included

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
AD2	200	522M	0.2	4	4	17 Lbs.	2
AD4	400	554M	0.2	4	3	17 Lbs.	2
AD6	600	555M	0.5	3	2.4	17 Lbs.	2
AD8	800	556M	0.5	2	1.5	17 Lbs.	2
AD10	1000	562M	0.5	2	1.5	17 Lbs.	2
AD12	1200	557M	0.9	2	1.5	17 Lbs.	2
AD15	1500	558M	0.9	3	2.4	17 Lbs.	2
AD20	2000	559M	1.8	2	1.5	17 Lbs.	2
AD30	3000	560M	1.8	1.5	1.1	17 Lbs.	2
AD40	4000	561M	1.8	1.5	1.1	17 Lbs.	2

Dual Ratio

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
AD6/12	600/1200	564M	0.5/0.9	3.0/2.0	2.4/1.5	17 Lbs.	2
AD8/16	800/1600	565M	0.5/0.9	2.0/2.0	1.5/1.5	17 Lbs.	2
AD10/20	1000/2000	571M	0.5/1.8	2.0/2.0	1.5/1.5	17 Lbs.	2
AD15/30	1500/3000	572M	0.9/1.8	2.0/1.5	1.5/1.0	17 Lbs.	2
AD20/40	2000/4000	573M	1.8/1.8	2.0/1.5	1.5/1.0	17 Lbs.	2

Type AD - Pressure Type Secondary Terminals

Mounting Base Not Included

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
AD2	200	522EP	0.2	4	4	17 Lbs.	1
AD4	400	554EP	0.2	4	3	17 Lbs.	1
AD6	600	555EP	0.5	3	2.4	17 Lbs.	1
AD8	800	556EP	0.5	2	1.5	17 Lbs.	1
AD10	1000	562EP	0.5	2	1.5	17 Lbs.	1
AD12	1200	557EP	0.9	2	1.5	17 Lbs.	1
AD15	1500	558EP	0.9	3	2.4	17 Lbs.	1
AD20	2000	559EP	1.8	2	1.5	17 Lbs.	1
AD30	3000	560EP	1.8	1.5	1.1	17 Lbs.	1
AD40	4000	561EP	1.8	1.5	1.1	17 Lbs.	1

Dual Ratio

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
AD6/12	600/1200	564EP	0.5/0.9	3.0/2.0	2.4/1.5	17 Lbs.	1
AD8/16	800/1600	565EP	0.5/0.9	2.0/2.0	1.5/1.5	17 Lbs.	1
AD10/20	1000/2000	571EP	0.5/1.8	2.0/2.0	1.5/1.5	17 Lbs.	1
AD15/30	1500/3000	572EP	0.9/1.8	2.0/1.5	1.5/1.0	17 Lbs.	1
AD20/40	2000/4000	573EP	1.8/1.8	2.0/1.5	1.5/1.0	17 Lbs.	1

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
AD2	200	522MP	0.2	4	4	17 Lbs.	1
AD4	400	554MP	0.2	4	3	17 Lbs.	1
AD6	600	555MP	0.5	3	2.4	17 Lbs.	1
AD8	800	556MP	0.5	2	1.5	17 Lbs.	1
AD10	1000	562MP	0.5	2	1.5	17 Lbs.	1
AD12	1200	557MP	0.9	2	1.5	17 Lbs.	1
AD15	1500	558MP	0.9	3	2.4	17 Lbs.	1
AD20	2000	559MP	1.8	2	1.5	17 Lbs.	1
AD30	3000	560MP	1.8	1.5	1.1	17 Lbs.	1
AD40	4000	561MP	1.8	1.5	1.1	17 Lbs.	1

Type AD - Pressure Type Secondary Terminals

Mounting Base Included

Dual Ratio

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
AD6/12	600/1200	564MP	0.5/0.9	3.0/2.0	2.4/1.5	17 Lbs.	1
AD8/16	800/1600	565MP	0.5/0.9	2.0/2.0	1.5/1.5	17 Lbs.	1
AD10/20	1000/2000	571MP	0.5/1.8	2.0/2.0	1.5/1.5	17 Lbs.	1
AD15/30	1500/3000	572MP	0.9/1.8	2.0/1.5	1.5/1.0	17 Lbs.	1
AD20/40	2000/4000	573MP	1.8/1.8	2.0/1.5	1.5/1.0	17 Lbs.	1

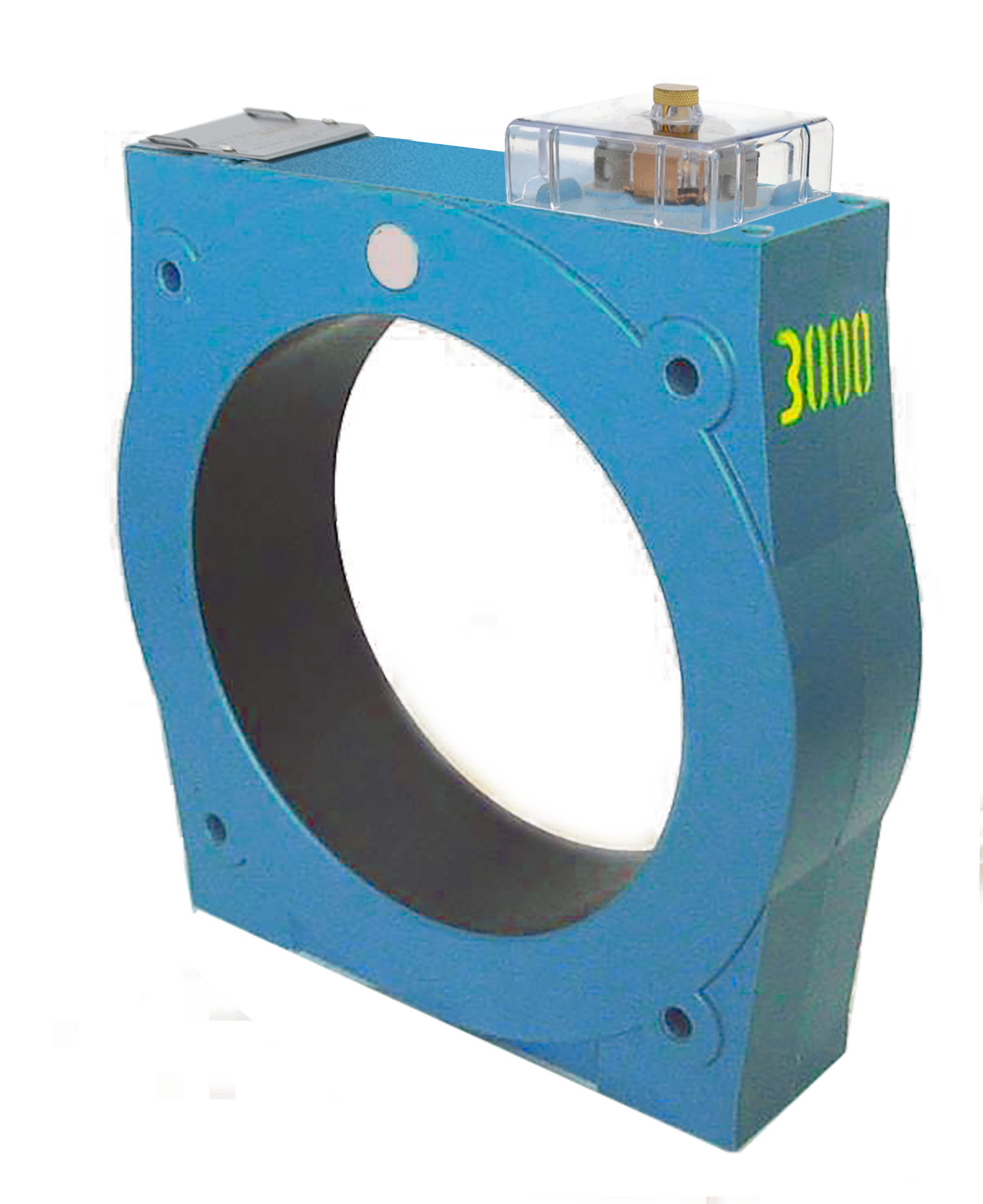

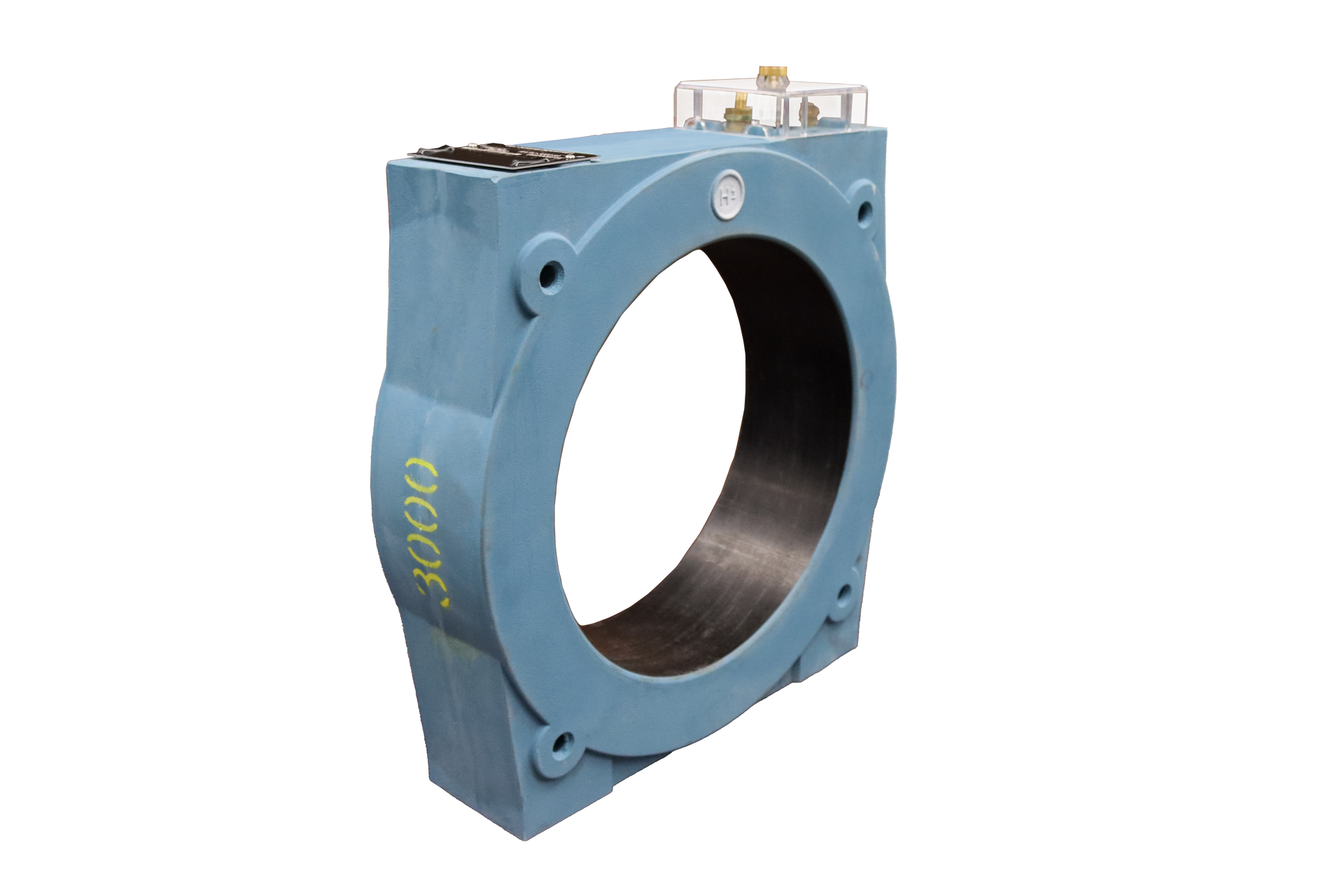

Type ALC | 600 Volt Class | Large Window Type II

Standard Features:

60 Hertz VAC, 10KV BIL.
Clear Sealable Secondary Terminal Cover
Retained Shorting Device
Certified Test Record With Each Transformer
Meets ANSI, NEMA, IEEE & EEI Standards

532P
Button

Type ALC - Stud Type Secondary Terminals

Mounting Base Not Included

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
ACL8	800	528	0.5	3	2.4	24 Lbs.	1
ACL10	1000	529	0.5	3	2.4	24 Lbs.	1
ACL12	1200	530	0.9	3	2.4	24 Lbs.	1
ACL15	1500	531	0.9	3	2.4	24 Lbs.	1
ACL20	2000	532	1.8	2	1.5	24 Lbs.	1
ACL30	3000	533	1.8	2	1.5	24 Lbs.	1
ACL40	4000	534	1.8	1.5	1.5	24 Lbs.	1

Dual Ratio

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
ACL10/20	1000/2000	541	0.5/1.8	3.0/2.0	2.4/1.5	24 Lbs.	1
ACL15/30	1500/3000	542	0.9/1.8	2.0/2.0	2.4/1.5	24 Lbs.	1
ACL20/40	2000/4000	543	1.8/1.8	2.0/1.5	1.5/1.1	24 Lbs.	1

Type ALC - Pressure Type Secondary Terminals

Mounting Base Not Included

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
ACL8	800	528P	0.5	3	2.4	24 Lbs.	1
ACL10	1000	529P	0.5	3	2.4	24 Lbs.	1
ACL12	1200	530P	0.9	3	2.4	24 Lbs.	1
ACL15	1500	531P	0.9	3	2.4	24 Lbs.	1
ACL20	2000	532P	1.8	2	1.5	24 Lbs.	1
ACL30	3000	533P	1.8	2	1.5	24 Lbs.	1
ACL40	4000	534P	1.8	1.5	1.5	24 Lbs.	1

Dual Ratio

Model	Primary	Catalog Number	Burden 0.3S Class	Rating Factor 30C	Rating Factor 55C	Weight	Drawing Figure
ACL10/20	1000/2000	541P	0.5/1.8	3.0/2.0	2.4/1.5	24 Lbs.	1
ACL15/30	1500/3000	542P	0.9/1.8	2.0/2.0	2.4/1.5	24 Lbs.	1
ACL20/40	2000/4000	543P	1.8/1.8	2.0/1.5	1.5/1.1	24 Lbs.	1

Type DF |600 Volt Class | 300 Volt Amperes

Standard Features:

60 Hertz VAC, 10KV BIL.
Clear Sealable Secondary Terminal Cover
Certified Test Record With Each Transformer
Meets ANSI, NEMA, IEEE & EEI Standards

1076P
Button

Type DF - 300 Volt Amperes with Stud Type Secondary Terminals

Stainless Steel Mounting Base Included

Model	Primary	Secondary	Ratio	Catalog Number	Burden 0.3S Accuracy Class	30C Continous Thermal Rating	Weight	Drawing Figure
DF1	120	120	1:1	1071	W	300 Volt Amps	8 Lbs.	1
DF2	240	120	2:1	1072	W	300 Volt Amps	8 Lbs.	1
DF2.4	288	120	2.4:1	1073	W	300 Volt Amps	8 Lbs.	1
DF2.5	300	120	2.5:1	1074	W	300 Volt Amps	8 Lbs.	1
DF4	480	120	4:1	1076	W	300 Volt Amps	8 Lbs.	1

Type DF - 300 Volt Amperes with Pressure Type Secondary Terminals

Stainless Steel Mounting Base Included

Model	Primary	Secondary	Ratio	Catalog Number	Burden 0.3S Accuracy Class	30C Continous Thermal Rating	Weight	Drawing Figure
DF1	120	120	1:1	1071P	W	300 Volt Amps	8 Lbs.	1
DF2	240	120	2:1	1072P	W	300 Volt Amps	8 Lbs.	1
DF2.4	288	120	2.4:1	1073P	W	300 Volt Amps	8 Lbs.	1
DF2.5	300	120	2.5:1	1074P	W	300 Volt Amps	8 Lbs.	1
DF4	480	120	4:1	1076P	W	300 Volt Amps	8 Lbs.	1

Type DB |600 Volt Class | 500 Volt Amperes

Standard Features:

60 Hertz VAC, 10KV BIL.
Clear Sealable Secondary Terminal Cover
Certified Test Record With Each Transformer
Meets ANSI, NEMA, IEEE & EEI Standards

1053
Button

Type DB - 500 Volt Amperes with Stud Type Secondary Terminals

Stainless Steel Mounting Base Included

Model	Primary	Secondary	Ratio	Catalog Number	Burden 0.3S Accuracy Class	30C Continous Thermal Rating	Weight	Drawing Figure
DB1	120	120	1:1	1051	W, X, M	500 Volt Amps	14 Lbs.	2
DB2	240	120	2:1	1052	W, X, M	500 Volt Amps	14 Lbs.	2
DB3	480	120	2:1	1066	W, X, M	500 Volt Amps	14 Lbs.	2
DB2.4	288	120	2.4:1	1053	W, X, M	500 Volt Amps	14 Lbs.	2
DB2.5	300	120	2.5:1	1054	W, X, M	500 Volt Amps	14 Lbs.	2
DB4	480	120	4:1	1055	W, X, M	500 Volt Amps	14 Lbs.	2

Type DA|600 Volt Class | 750 Volt Amperes

Standard Features:

60 Hertz VAC, 10KV BIL.
Clear Sealable Secondary Terminal Cover
Certified Test Record With Each Transformer
Meets ANSI, NEMA, IEEE & EEI Standards

1005
Button

Type DA - 750 Volt Amperes with Stud Type Secondary Terminals

Stainless Steel Mounting Base Included

Model	Primary	Secondary	Ratio	Catalog Number	Burden 0.3S Accuracy Class	30C Continous Thermal Rating	Weight	Drawing Figure
DA1	120	120	1:1	1001	W, X, M, Y	750 Volt Amps	20 Lbs.	3
DA2	240	120	2:1	1002	W, X, M, Y	750 Volt Amps	20 Lbs.	3
DA2.4	288	120	2.4:1	1003	W, X, M, Y	750 Volt Amps	20 Lbs.	3
DA2.5	300	120	2.5:1	1004	W, X, M, Y	750 Volt Amps	20 Lbs.	3
DA4	480	120	4:1	1005	W, X, M, Y	750 Volt Amps	20 Lbs.	3

Transformer Brackets

Top Hat

ALD-21A
Button

Catalog Number	Top Hat Mounting Bracket	Material	Figure
ALD-12A	1 Position “Top Hat” Mounting Bracket	1/4” x 3” Aluminum	1
ALD-14A	2 Position “Top Hat” Mounting Bracket	1/4” x 3” Aluminum	1
ALD-21A	3 Position “Top Hat” Mounting Bracket	1/4” x 3” Aluminum	1
ALD-28A	4 Position “Top Hat” Mounting Bracket	1/4” x 3” Aluminum	1
ALD-34A	5 Position “Top Hat” Mounting Bracket	1/4” x 3” Aluminum	1

Channel

ALC-27A
Button

Catalog Number	Channel Mounting Bracket	Material	Figure
ALC-10A	1 Position “Channel” Mounting Bracket	1/8” ” Aluminum	2
ALC-20A	2 Position “Channel” Mounting Bracket	1/8” ” Aluminum	2
ALC-27A	3 Position “Channel” Mounting Bracket	1/8” ” Aluminum	2
ALC-33A	4 Position “Channel” Mounting Bracket	1/8” ” Aluminum	2
ALC-40A	5 Position “Channel” Mounting Bracket	1/8” ” Aluminum	2

Angle

ALT-16A
Button

Catalog Number	Angle Mounting Bracket	Material	Figure
ALT-16A	3 Position "Angle" Mounting Bracket	Aluminum	3

417-532-7121

Type TCB | 600 Volt Class | Miniature Bar Type | High Accuracy

B10602YKBRP

Type AB | 600 Volt Class | Intermediate Window & Bar | High Accuracy

W50600Y1KP

B506051Y1KP

Type AD | 600 Volt Class | Large Window Type 1

W82000YMP

Type AB | 600 Volt Class | Intermediate Window Type

120YKP

Type AB | 600 Volt Class | Intermediate Bar Type

446YKP

Type AP | 600 Volt Class | Pad Mount Bushing Style

601Y

The Eliminator Type AD | 600 Volt Class | Large Window Type 1

562YMP

198KBRP

350KBRP

199KBRP

208KBRP

100KP

107KP

601NE

554EP

532P

1076P

1053

1005

Top Hat

Channel

Angle

417-532-7121

Administrative Offices:PO Box 1101722 Durham Rd.Lebanon, MO 65536

The Eliminator
Type AD | 600 Volt Class | Large Window Type 1

Administrative Offices:
PO Box 1101
722 Durham Rd.
Lebanon, MO 65536
